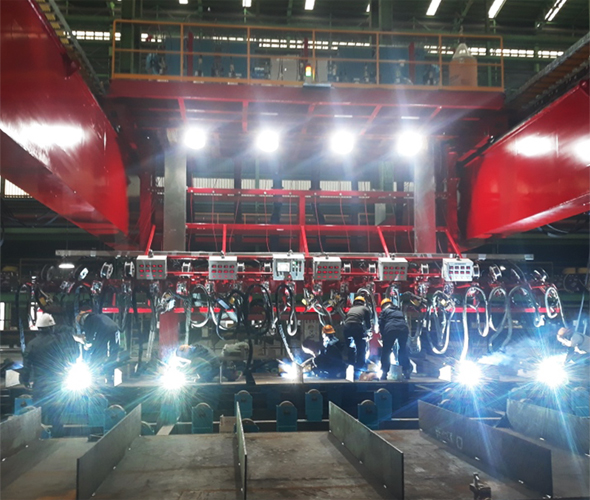

20Pole Welding mc
(Outo Carriage)
본 설비는 Longi, Stiffener와 Trans Girder를 용접하기 위한 설비로서 각각의 Telescopic Boom에 Welding Head 또는 Outo Carriage를 설치하여 용접을 한다.
